ATaPSI | Automated Temperature and Pressure with a Single Interface
ATaPSI ATaPSI (Automated Temperature and Pressure with a Single Interface) is DigiVac’s integrated vacuum process automation platform. It transforms existing vacuum ovens, tube furnaces, and thermal processing systems into fully automated manufacturing platforms.
By combining the DigiVac SNAP Vacuum Controller with an upgraded Eurotherm® temperature controller, custom oven modifications, data logging and integrated vacuum hardware, ATaPSI gives operators complete control of both vacuum and temperature from a single touchscreen.
The system synchronizes pressure, temperature, programmable recipes, and data logging into one repeatable process—reducing operator involvement while improving product consistency, process documentation, and manufacturing efficiency.
Learn more about how it works read our BLOG: ATaPsi: Integrated Vacuum and Temperature Control for Vacuum Ovens & Furnaces
Why Choose ATaPSI?
Most vacuum ovens require operators to independently control vacuum and temperature while manually recording process data.
ATaPSI combines these operations into one automated platform that controls:
- Chamber pressure
- Chamber temperature
- Recipe execution
- Process timing
- Vacuum venting
- Process monitoring
- Remote communications
- Data logging
Instead of monitoring gauges and adjusting valves manually, operators simply select a recipe and press Run. The system automatically controls every programmed vacuum and temperature step until completion.
| Standard Vacuum Oven | ATaPSI |
| Separate vacuum controller | One interface |
| Manual recipes | Automated recipes |
| Manual recording | Automatic logging |
| Operator dependent | Repeatable |
| Difficult validation | Traceable |
System Features
Integrated Vacuum & Temperature Control
Control pressure and temperature simultaneously through one touchscreen.
Recipe Automation
Store:
- Up to 5 recipes
- Up to 80 programmable steps per recipe
Each step can include:
- Vacuum level
- Temperature
- Hold time
- Ramp time
Recipes can be started from the touchscreen or remotely through RS232.

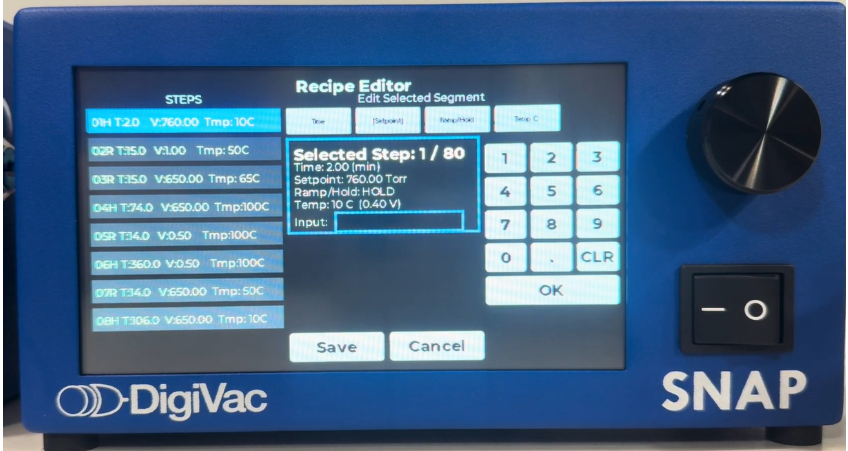

Recipe control example:
| Recipe 3 | ||||||
| Vac Time | ||||||
| Step | minutes | Vacuum level | Temperature | Ramp/Hold | ||
| 1 | 2 | 25 | 10 | H | ||
| 2 | 1 | 15 | 50 | H | ||
| 3 | 2 | 25 | 65 | H | ||
| 4 | 1 | 15 | 100 | H | ||
| 5 | 2 | 30 | 100 | H | ||
| 6 | 1 | 10 | 100 | H | ||
| 7 | 2 | 30 | 50 | H | ||
| 8 | 1 | 10 | 10 | H | ||

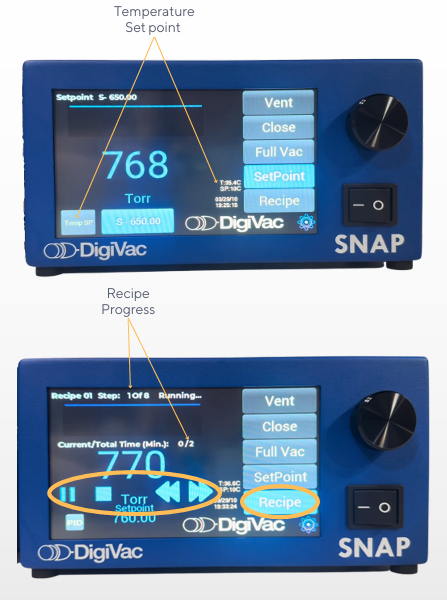

Automated Process Control
Control modes include:
- Vent
- Close
- Full Vacuum
- Setpoint Control
- Recipe Mode
Recipes may be paused, resumed, skipped forward, or rewound without restarting the process.
Remote Connectivity
Supports
- PLC integration
- RS232 communications
- DVCUP protocol
- Host computer control
- Process monitoring
Data Logging
The Torch Data Logger automatically records:
- Vacuum
- Temperature
- Date
- Time
- Process history
Logs export directly to USB and can be archived for quality documentation and process validation.
This Bundle Includes
The configuration is comprised of several key components the vacuum controller, chamber, pumping system, Temperature controller and the vacuum and temperature data logger
DigiVac SNAP ATaPSI Package | Vacuum Controller
- SNAP Vacuum Controller
- ATaSPI Code
- RS232 interface

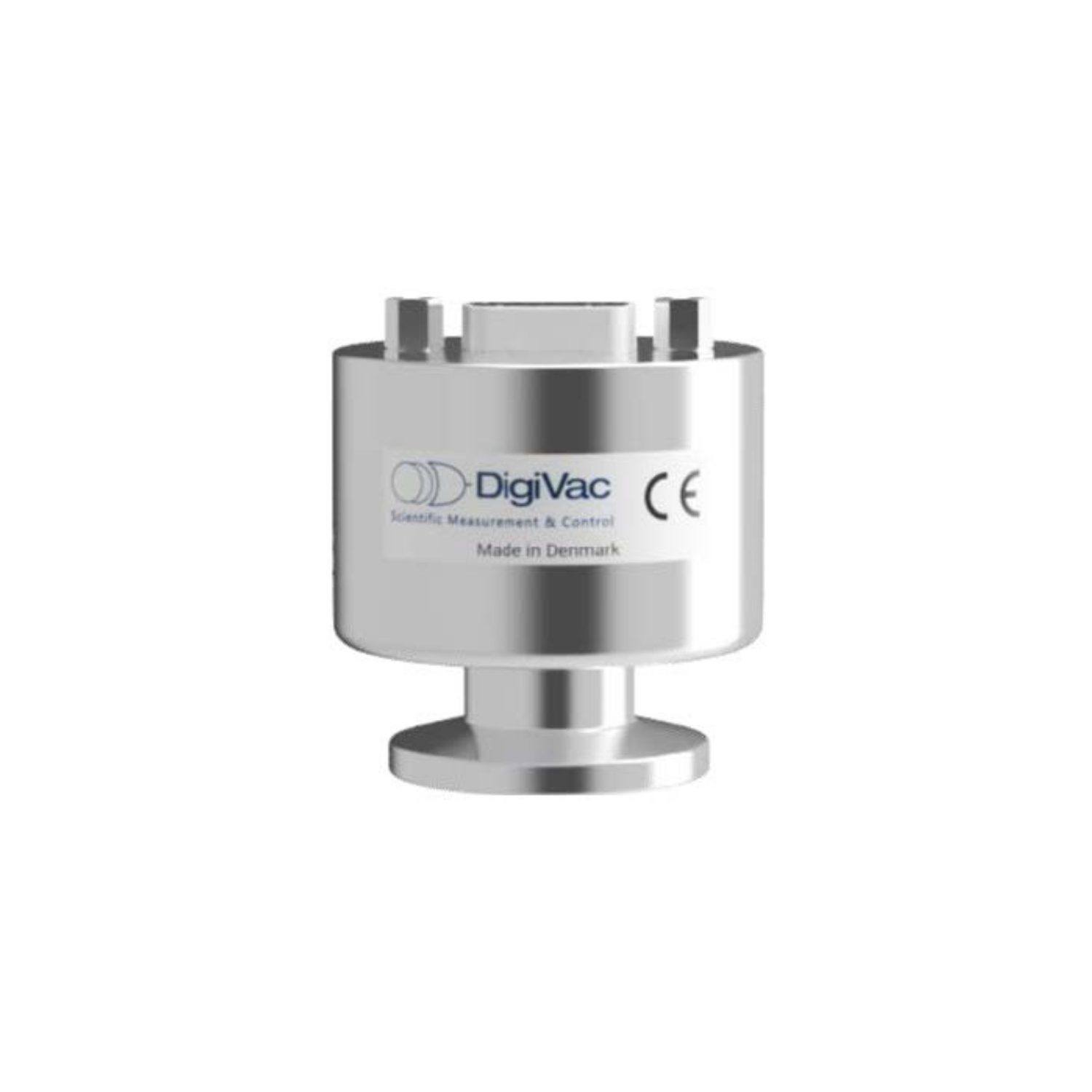

- Wide-range DPP vacuum sensor
- 4 to 20 mA
Chamber Modifications / Requirements
ATaPSI requires hardware modifications to enable integration, including ovens and furnaces with the following features:
- KF25 Access Port
- KF40 Access Port
- Terminal Strip with 4x connections for 4-20 mA Communication
- Watlow 3204 Temperature and Process controller
These modifications are required to integrate existing vacuum ovens into automated vacuum and temperature recipe-driven systems.
Eurotherm Temperature Upgrade | Temperature Controller
Includes integration with the upgraded Eurotherm 3204 controller featuring:
- Remote temperature setpoint control
- 4–20 mA temperature feedback
- 0–10 V remote temperature input
- Seamless communication with SNAP
This allows the SNAP to command oven temperature while simultaneously controlling chamber vacuum from a single interface.
Torch Data Logger | Complete Your Process with Automated Data Logging
While ATaPSI automates vacuum and temperature control, the optional Torch Data Logger captures the data behind every process. Working seamlessly with the SNAP controller, Torch records chamber pressure and temperature throughout each recipe, creating a permanent record for process validation, quality control, troubleshooting, and compliance.
With a simple plug-and-play connection, Torch automatically logs process data to internal memory or a USB drive, allowing users to review, archive, print, or share complete batch reports without manual data collection.
- Simultaneously logs vacuum pressure and chamber temperature
- Automatically records date, time, recipe progress, and process conditions
- Export data directly to USB in CSV format for Excel analysis
- Generate printable reports for quality documentation
- Store years of process history in internal memory
- Simplify process validation and regulatory compliance
- Eliminate manual record keeping and transcription errors
Recommended for: Production environments, research laboratories, regulated manufacturing, quality assurance, and any application requiring documented process history.
Individual Components:
- SNAP-SS
- ATaPSI Code
- SNAP-RS232
- Option: SNAP: 4 to 20mA
- SEN-DPP External Sensor & Sensor Cable
- Torch Data Logger
- Custom Oven or Furnace (Please specify desired size and unit model)
- KF25 Access port
- KF40 Access port
- Terminal Strip with 4x connections for 4-20 mA Communication
- Upgraded Watlow Eurotherm 3204 Temperature and Process controller
- Remote temperature setpoint control
- 4–20 mA temperature feedback
- 0–10 V remote temperature input
- Seamless communication with SNAP

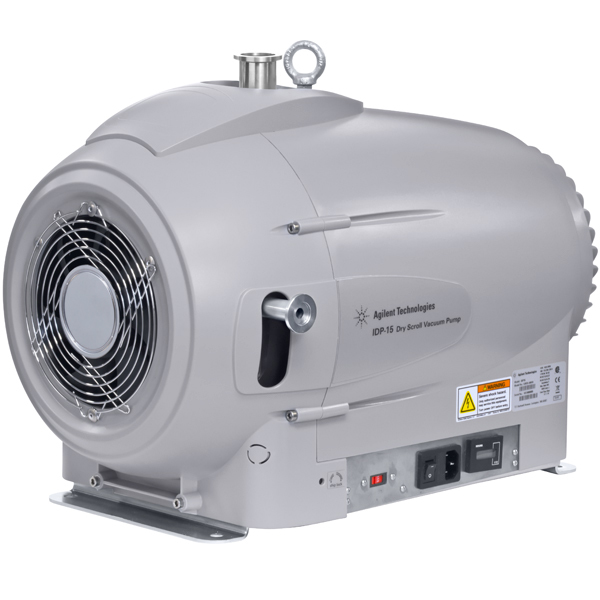

- Pumping System (Please specify desired pumping range)
- Oven Integration Kit
(Additional plumbing, fittings, valves, and accessories vary based on oven configuration.)
Unlike a standalone controller, ATaPSI is delivered as an engineered integration package.
From SNAP Control to ATaPSI Process Automation
SNAP Vacuum Controller
The SNAP Vacuum Controller provides intelligent vacuum control for a wide range of vacuum processes. Standard capabilities include:
- Automated vacuum pressure control
- Vent, Close, Full Vacuum, and Setpoint modes
- Recipe-based vacuum automation
- Pressure monitoring and control
- External valve control
- PLC/RS232 communications
- Optional vacuum data logging
ATaPSI Upgrade
ATaPSI expands the SNAP platform by integrating compatible temperature control hardware, oven modifications, and process automation into a single interface. In addition to SNAP’s standard vacuum capabilities, ATaPSI adds:
- Integrated vacuum and temperature control
- Single touchscreen for both process variables
- Temperature setpoint control through the Eurotherm controller
- Combined temperature and vacuum recipes
- Simultaneous pressure and temperature data logging
- Complete thermal process automation
- Upgrade package for compatible ovens and furnaces
Benefits of ATaPSI
- One Interface for Temperature & Vacuum: Control both process variables from a single touchscreen instead of multiple independent controllers.
- Automate Repeatable Manufacturing: Replace manual operation with programmable recipes that deliver consistent results every cycle.
- Upgrade Existing Equipment: Modernize compatible vacuum ovens and furnaces without replacing the entire system.
- Improve Traceability: Capture temperature and vacuum data for quality assurance, validation, and process optimization.
- Ready for Industry 4.0: Integrates with PLCs, SCADA systems, and host computers through RS232 and DVCUP communications.
Applications
ATaPSI is ideal for any thermal vacuum process requiring repeatable temperature and vacuum profiles. Compatible with equipment capable of providing a 4–20 mA temperature feedback signal and accepting a 0–10 V remote temperature setpoint
| Industries Served | Applications | Who would use ATaPSI? |
| Aerospace | Vacuum drying | Process Engineers |
| EV Battery | Aerospace composites | Manufacturing Engineers |
| Semiconductor | Battery manufacturing | R&D Laboratories |
| Medical Devices | Electronics & semiconductor packaging | Production Facilities |
| Research | Degassing | Universities |
| Composites | Medical device manufacturing | OEM Vacuum Oven Manufacturers |
| Heat Treatment | Research laboratories | Aerospace Manufacturers |
| Universities | Composite curing | Battery Manufacturers |
| Heat treatment | Pharmaceutical & Medical Device Companies | |
| Tube furnaces | ||
| Vacuum ovens | ||
| Muffle furnaces | ||
| Custom vacuum chambers | ||
| Industrial thermal processing |
