Cascade TVO-5 Vacuum Oven
The Cascade TEK TVO-5 vacuum oven is our largest benchtop (18″ x 18″). Cascade TEK is happy to offer everything you need for a complete vacuum drying system – including dry or wet vacuum pumps, connection kits and a variety of replacement door gaskets suitable to your application.
Operating Range: Ambient +26°F to 302°F / Ambient +14.4°C to 150°C
Features:

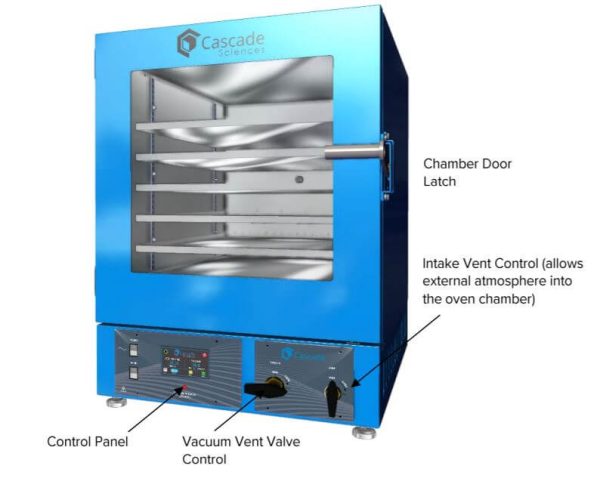

Oven temperature is controlled via a Watlow PM9 Plus programmable ramp and soak controller. (Ask about how it can be configured to automatically execute your vacuum drying process). The TVO-5 also includes a fully integrated digital overtemperature protection controller. The vacuum is read in inches of Mercury (Hg) via a digital vacuum gauge. Vacuum & Backfill hand valves are conveniently located on the front control panel. The purge valve is set up to allow for backfilling with any inert gas. Rear connections include a 3/8″ tube stub for the vacuum pump and a 1/4″ tube stub for backfill. An additional KF-25 access port is located in the rear center for optional feedthrough or sensor connections. The TVO-5 also has 3 adjustable aluminum shelves. Cascade TEK offers appropriately sized connection kits and pumps to bring the entire system online.
- Glass Viewing Window
- Inert gas backfill Connection
- Stainless Steel Interior
- Aluminum Shelves
- Powder Coated Steel Exterior
- Digital Integrated Over Temperature Limit
- Spare KF-25 Access Port
- Recipe-based PID Temperature Control. 4 Ramp and Soak recipes with up to 40 total steps.
- 61010-1, EN 61010-1, CSA 61010-1, CE, SAFETY CERTIFICATIONS
- Analog Outputs for temperature and pressure
Flexible Pumping / Feedthrough Connection Ports

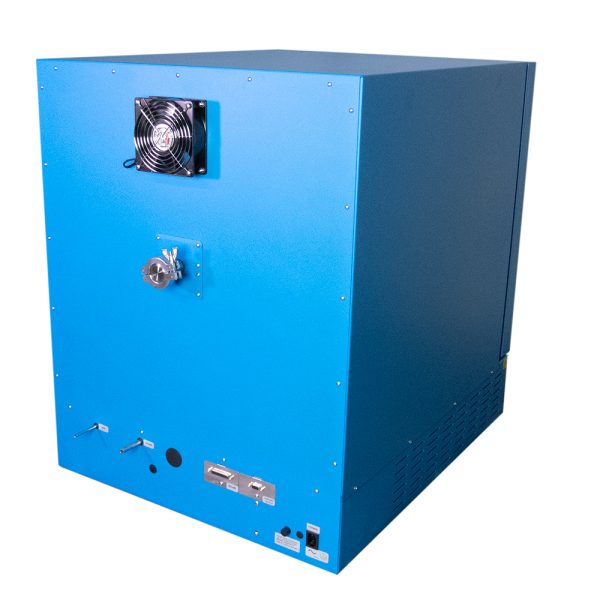

The TVO-5 ovens offer two different vacuum oven connection points. The standard connection is a 3/8″ diameter barb located at the rear of the oven. It is connected to the vacuum valve on the front control panel. For even faster evaporation, purging or drying consider upgrading to the SNAP oven Connection kit. The SNAP to Oven connection kit secures to the oven’s rear 1″ diameter KF-25 port located on the back center of the chamber.
The Installation connection never reduces flow by continuing with 1” diameter vacuum rated clear lines, a 1” diameter KF-25 side mounted vacuum valve, and KF-25 fittings and hardware. This KF-25 port can also be used to run temperature feed-throughs or monitoring sensors inside the vacuum chamber during processing.
Automate Your Vacuum Drying Process
Automate your vacuum drying process with the touch of a button. Check out DigiVac’s SNAP vacuum controller. This high flow, process controller has the ability to automate evacuation and purge cycles for easy control of your vacuum process. All with the touch of a button or the twist of a knob. SNAP vacuum controller provides a simple solution for precise control and venting in one. Automated Process Controller ideal for Vacuum Ovens, TVAC, Drying Powders, API and more!
Processes and Addons: Please Inquire!
- Additional Serial communication capabilities including Modbus® RTU, EtherNet/IP™, Modbus® TCP, PROFIBUS DP, DeviceNet™ and J1939 CAN bus
- Additional access ports for feedthrough and power connections
- Additional shelves or custom racks to maximize oven capacity
- Also available in 220V configurations
- NIST traceable calibrations
- Factory Acceptance Testing (FAT)
